J41H / W American Standard Globe Valve is suitable for cutting off or connecting pipeline medium in various working conditions of petroleum, chemical, pharmaceutical, fertilizer and electric power industry with nominal pressure PN1.6-16MPa and working temperature-29-550 C. The driving mode is manual, gear drive, electric, pneumatic, etc.


Structural features of American Standard globe valves


The design and manufacture of the product conform to the American national standard ANS1B16.34, the United States BS1873 and other advanced foreign standards.


The shape of the valve body is barrel shaped or streamlined. The shape of circulation is straight through. The fluid resistance is small.


(3) Conical sealing is used for the sealing surface of the closing parts (gate flaps) and the valve seat, with small closing force, erosion resistance and reliable sealing.


The valve seat can be replaceable, and can be combined with sealing surface materials at will to meet the requirements of working conditions and extend the service life.


_Large caliber and high pressure globe valves adopt lifting rod according to the need of closing force, and are equipped with rolling bearing type with impact handwheel to reduce closing force.


_The main materials, interior materials, fillers and fasteners can be reasonably combined according to user requirements or actual working conditions.


Design standard for American Standard globe valves


设计与制造
结构长度
法兰尺寸
对焊连接尺寸
压力-温度
试验-检验
ANSI B16.34 BS1873
ANSI B16.10
ANSI B16.5
ANSI B16.25
ANSI B16.34
API 598


American Standard globe valve pressure test


公称压力PN(Lb)
强度试验
气密封试验
气密封试验
MPa
Lbf/in2
MPa
Lbf/in2
MPa
Lbf/in2
150
3.0
430
2.2
315
0.4-0.7
60-100
300
7.7
1110
5.7
815
600
15.3
2220
11.3
1630
900
23.0
3330
17.0
2445
1500
38.4
5560
28.2
4080
2500
64.0
9255
47.0
6790


Main parts material of American Standard globe valve


体、盖
阀杆
密封面
垫片(环)
填料
工作温度
适用介质
WCB
2Cr13
13Cr
STL
木体材料
尼龙
增强柔性石墨
13Cr/柔性石墨
1Cr13/Flexible
SFB-2
08软钢
F304
F316
F304L
F316L
柔性石墨
增强柔性石墨
SFB/260
SFP/260
PTFE
≤425

蒸汽
油品
WC1
38CrMoAl 25Cr2MoV
≤425
WC6
≤540
WC9
≤570
C5 C12
≤540
CF8
F304
≤200
硝酸
醋酸
尿素
CF8M
F316
CF3
F304L
CF3M
F316L

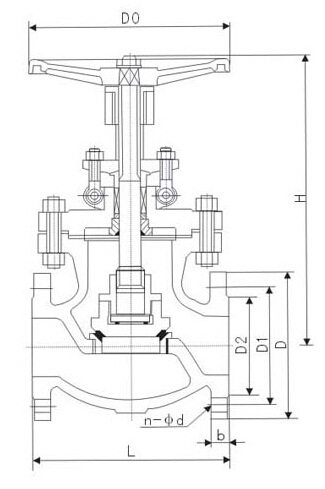

Main dimensions of globe valves


DN
150Lb 凸面法兰(RF) 主要尺寸(mm)
重量
mm
in
L
D
D1
D2
b
n-φd
H
D0
15
1/2
108
89
60.5
35
11.2
4-16
241
100
6.9
20
3/4
117
98
69.9
43
12.7
4-16
241
100
9.8
25
1
127
108
79.2
51
14.2
4-16
242
125
13.5
32
11/4
140
117
89
63
16
4-16
280
160
19.5
40
11/2
165
127
98.6
73
17.5
4-16
286
160
28.5
50
2
203
152
120.7
92
19
4-19
368
200
18
65
21/2
216
178
139.7
105
22.4
4-19
387
200
30
80
3
241
190
152.4
127
24
4-19
411
250
41
100
4
292
229
190.5
157
24
4-19
454
250
64
125
5
356
254
216.0
186
24
8-22.5
455
350
86
150
6
406
279
241.3
216
25.4
8-22.5
541
350
113
200
8
495
343
298.5
270
28.4
8-22.5
651
450
178
250
10
622
406
362.0
324
30.2
12-25.4
800
450
270
300
12
698
483
431.8
381
32
12-25.4
1231
600
350
350
14
787
533
476.3
413
35
12-29
1450
600
460
400
16
914
597
539.8
470
36.6
26-29
1645
600
590



DN
300Lb 凸面法兰(RF) 主要尺寸(mm)
重量
15
1/2
152
95
66.5
35
14.2
4-16
241
140
7.7
20
3/4
178
117
82.5
43
16
4-19
241
140
11.3
25
1
203
123
89
51
17.5
4-19
283
160
16.8
32
11/4
216
133
98.5
63
19
4-19
320
200
21.2
40
11/2
229
155
114.3
73
20.6
4-22.5
322
200
32.6
50
2
267
165
127
92
22.4
8-19
399
200
25
65
21/2
292
190
149.4
105
25.4
8-22.5
438
250
30
80
3
318
210
168.1
127
28.4
8-22.5
464
280
35
100
4
356
254
200.2
157
31.8
8-22.5
565
350
56
125
5
400
279
235
186
35
8-22.5
614
350
96
150
6
444
318
269.7
216
36.6
12-25.4
717
400
120
200
8
559
381
330.2
270
41.2
12-25.4
930
500
212
250
10
622
444
387.4
324
47.8
16-28.5
1012
550
330
300
12
711
521
450.8
381
50.8
16-32
1231
600
472
350
14
762
584
514.4
413
54
20-32
1450
600
715
400
16
864
648
571.5
470
57.2
20-35
1645
600
920



DN
600Lb 凸面法兰(RF)主要尺寸(mm)
重量
mm
in
L
D
D1
D2
b
n-φd
H
D0
15
1/2
165
95
66.5
35
14.5
4-16
285
100
7.8
20
3/4
190
117
82.5
43
16
4-19
285
125
12.5
25
1
216
124
89
51
17.5
4-19
313
160
17.5
32
11/4
229
133
98.5
63
21
4-19
328
160
23.5
40
11/2
241
156
114.3
73
22.5
4-22.5
365
180
38.5
50
2
292
165
127
92
33
8-19
444
200
35
65
21/2
330
190
149.4
105
36
8-22.5
483
250
50
80
3
356
210
168.1
127
39
8-22.5
533
250
60
100
4
432
273
216
157
45
8-25.4
622
350
110
125
5
508
330
266.7
186
52
8-28.5
750
350
200
150
6
559
356
292.1
216
55
12-28.5
800
450
230
200
8
660
419
349.3
270
63
12-32
927
500
410
250
10
787
508
431.8
324
71
16-35
1257
600
625
300
12
838
559
489
381
74
20-35
1468
680
860
